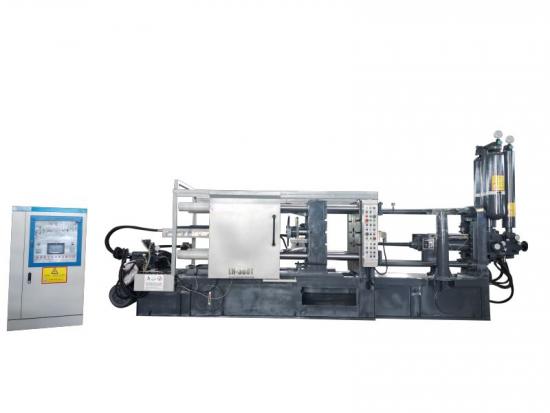

The cold chamber die casting machine for furniture hardware plays an important role in the production of
furniture hardware accessories. The following are its main features:
1. High-precision production: The cold chamber die-casting machine can provide a high-precision casting
process to ensure that the size and shape of furniture hardware accessories meet the design requirements.
2. Efficient production: Cold chamber die-casting machines usually have faster production cycles and high
productivity, and can meet the large-volume needs in furniture production.
3. High-quality surface treatment: Through cold chamber die-casting, high-quality surface treatment can
be obtained, giving the furniture hardware accessories a good appearance and smoothness.
4. Diversified production: The cold chamber die-casting machine can be adapted to the casting of a
variety of materials, including aluminum alloy, magnesium alloy, etc., and can meet the different needs
of furniture hardware accessories.
5. Energy saving and environmental protection: Compared with hot chamber die casting, cold chamber
die casting can usually use energy more efficiently, reduce exhaust gas emissions, and meet environmental
protection requirements.

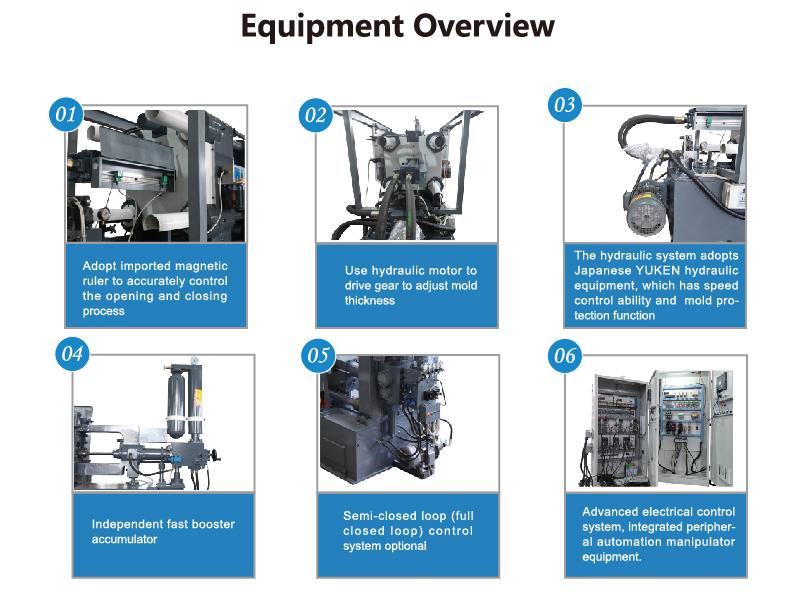

6. Automation control: Modern cold chamber die casting machines are usually equipped with advanced
automation control systems, which can realize the automation of the production process and improve
production efficiency and consistency.
7. Quick mold change: Cold chamber die casting machines are usually designed to be able to quickly
change molds to adapt to the production needs of different types of furniture hardware accessories
and improve production flexibility.
8. Stability and reliability: The cold chamber die casting machine has stable working performance and
reliable operating system, and can operate stably for a long time to ensure production efficiency and
product quality.
Specification
LH series of standard parameter table (180 t)
ITEMS
Unit
Specification
Clamping Force
KN
1800
Opening stroke
mm
380
Die thickness(Min--Max)
mm
200~550
Space between tie bars
mm
480*450
Ejector stroke
mm
80
Ejector force
KN
110
Injection position(0 as center)
mm
0,-140
Injection force(intensification)
KN
270
Injection stroke
mm
350
Plunger diameter
mm
¢50 ¢60 ¢70
lnjection weight(aluminum)
Kg
2.4
Casting pressure (intensification)
Mpa
112/78/57
Max. casting area(40Mpa)
CM2
450
Injection plunger penetration
mm
130
Diameter of pressure chamber flange
mm
110
Height of pressure chamber flange
mm
10
Max.working pressure
MPa
14
Motor power
Kw
11
Dimensions (L*W*H)
m
5.22*1.5*2.35
Machine lifting reference weight
T
6.7
Oil tank capacity
L
600
will not be changed without notice)

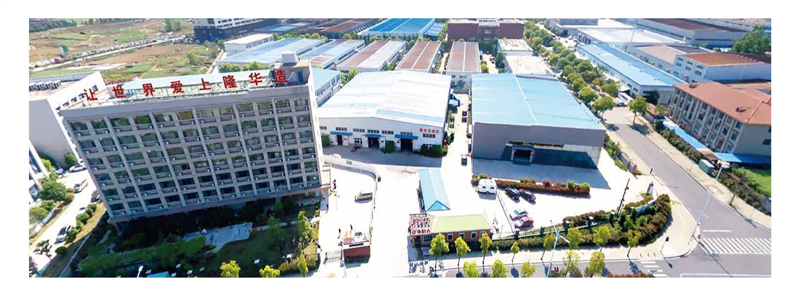

ABOUT US
