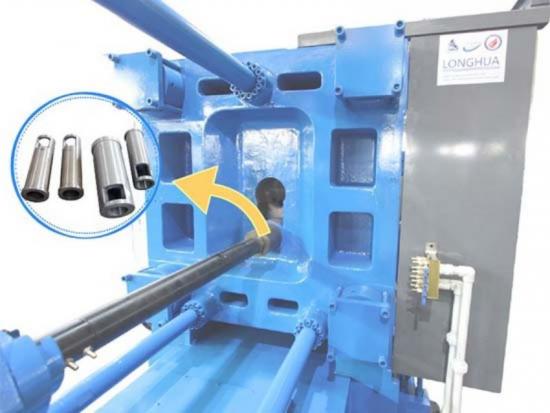

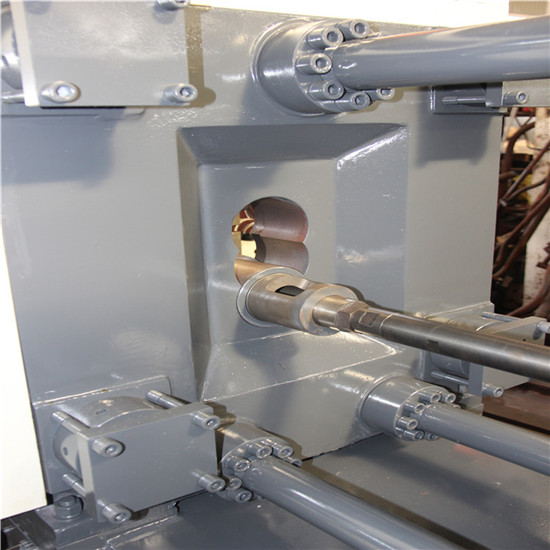

Parts of Die Casting Machine: Injection Chamber

Parts of Die Casting Machine: Injection Chamber
Products Description


Specification

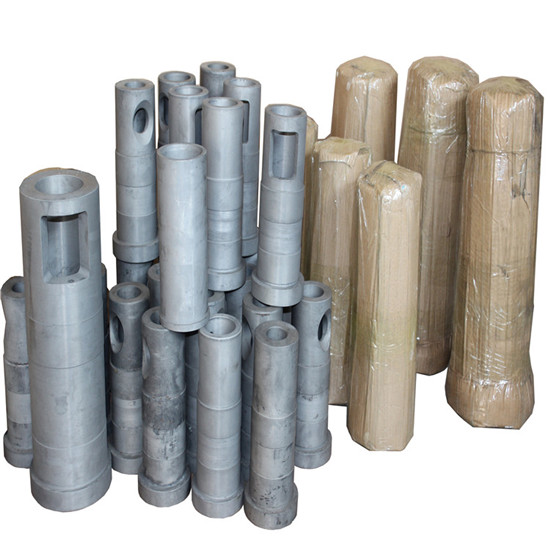

Our factory specializes in the production of various domestic and foreign brands of die-casting machine injection chambers (inlet barrel, melting cup sprue sleeve), water circulation cooling injection chamber, integral injection chamber, three double positioning injection chambers, and double conical positioning injection chambers. room etc.

The material is made of high-performance hot die steel: 3C2W8V HI3 electroslag material SKD-61 8407. The process adopts heat treatment matrix hardness HRC45-48, nitriding depth 0.25-0.3, nitriding hardness HV≥900, easy installation and disassembly, wear resistance and high temperature resistance. It has good cooling effect, impact resistance and corrosion resistance. It can be specially produced according to customer drawings. The average use mold number is ≥30,000 times/mold. It is durable, high quality and low price.The specific die-casting machine brands are as follows:Lijin, Yizumi, Bühler, Xinjiasheng, Aluminum Platform, Toshiba, Toyo, Ube, Yongda, Itela, Fulai, Sanji, Shanghai, Longhua, Baoyang, Haitian, etc.:The specific model specifications of the injection chamber of the die-casting machine are as follows: 125T/140T/160T /180T/ 200T/ 280T/ 400T/ 500T/550T / 630T/700T / 800T /900T/ 1000T/1100T /1250T/ 1300T/1600T /2000T /2600T/3000T/4500T



ABOUT US
Bengbu Longhua Die Casting Machine Co.,Lid is a company based in Bengbu City,Anhui Province,China.It specializes in the manufacturing of die casting machines and related equipment.Established in 1982,Longhua Die Casting Machine Co.,Ltd has been involved in the die casting industry for several decades.The company focuses on research,development,production,and sales of various types of die casting machines.The company's product range covers cold chamber die-casting machines,die-casting manipulators,industrial robots and peripheral equipment of die-casting machines to meet the needs of different customers.
